42194144031

Operating principle:

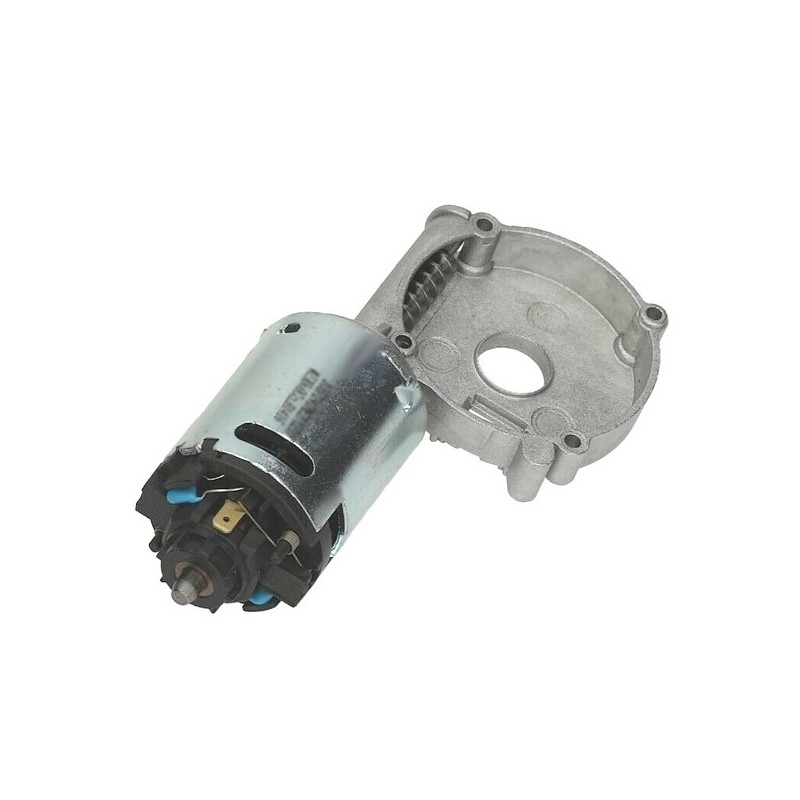

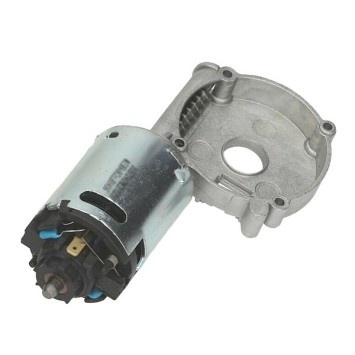

The coffee mill is driven by a DC motor (1) using an endless helical wheel (2). The endless screw leads to a gear that turns the lower wheel (4). On the same axis, a wheel (3) has two magnets (6) which induce two pulses on a sensor, which in turn transmits them to the electronic system.

Attention

This mill operates under continuous voltage : Danger, to be manipulated out of tension by a qualified person with serious references in electricity/ electronic.

used on many Saeco Philips, Gaggia ...

machines

saeco : exprelia, exprelia evo class top, intelia, intuita, minuto, minuto cappuccino, moltio, odea go and giro, syntia, syntia cappuccino, syntia class dgt, syntia focus Talea Giro, Talea Ring, Talea Ring Plus, Talea Touch, Xelsis, Xsmall

saeco pro : Lirika Black and Focus, Lirika Plus, Lirika Otc

gaggia : Accademia, Brera, Naviglio, Platinum Vision, Platinum, Velasca, Anima

Motor AC-DC & GT; 37.5W for saeco

Motor CoffeeGrinder V3.1 230V

Molding engine P124 230V

421941144031
