Mapalga advice : Remember to clean the Coffee group with cold water at least once a week, and lubricate the coffee group every 500 cafes.

If you use hot water during cleaning, the fat will dissolve, so it will be necessary to grease the parts in motion more often.

in summary :

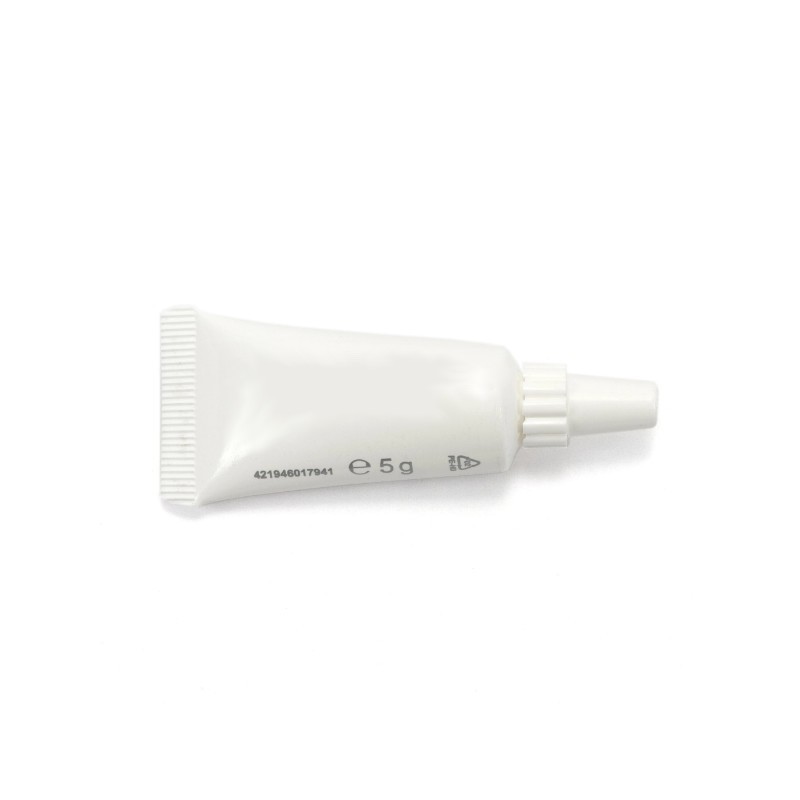

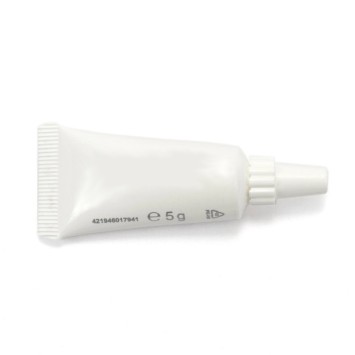

take a Gaggia fat tube to lubricate the coffee group. Do not use domestic oil, margarine, or even industrial lubricants, they are not qualified for this use. Gaggia fat is of quality for food contact and lubrication for this
mechanism.

Photo credit: MAPALGA SARL 05-2016

Get the group of its accommodation by pressing on "Push" and pull the verse you lateral guide : Apply the grease Gaggia so homogeneous on the two guides lateral inside the group. Use possibly a Small brush to distribute well.
The photo opposite shows us the axis and the central part : Apply the Gaggia grease on the axis and on the central part that slides.
REQUALING OF THE Café Group : When the lubrication is finished, the internal parts of the coffee group may be offset. Then re -order if necessary the coffee group by presenting face to face the two arrows in position n (neutral. This is its rest position.
Replace the café group in it presenting on the guides lower, then pushing it slowly until he heard the "clac" of sound correct. close the door and restart the machine

HD5061

More details

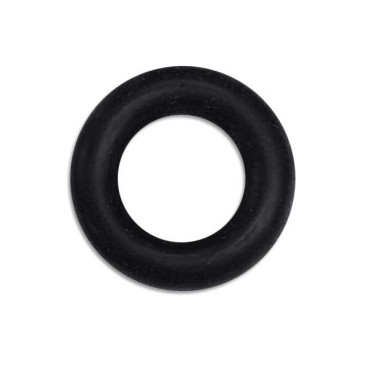

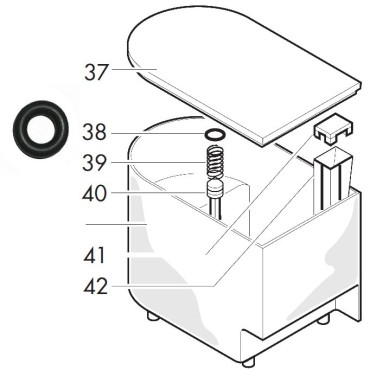

If the Coffee group's toric seal is damaged, think of replace it

Exists under other codes: 11005040 - 1501.098 - 3117587 - 421941248191 - 421946017941 - 996530002699 - 996530046032 - 996530070318 - V0050186 - 11028379

KLUBERLUC V2 NH1 11-222 Tube 5gr.
