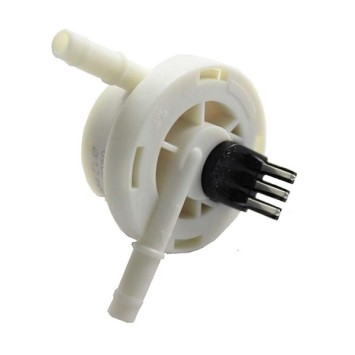

operating principle : the flow meter is a component made up of a turbine with a magnet, in a plastic material shell. With the passage of water, the turbine turns, and the magnet passes in front of a micro -Contact to send an impulse flow to the electronic card

1 Pulse (or turbine tower) then corresponds to a precise volume of water

as a function of the number of pulses, the device will then stop the water supply to obtain the right dosage in your cup of coffee, or to determine when the descaling must be carried out.

diameter of the inner nozzle D = 1.2 mm or an eligible flow of 0.05 - 0.40 l/min depending on pump and circuit shock.

Information:

• Code: 12000781/996530007887

• diameter of Entrance/output tips: 6 mm
• Entrance and output at right angle
• For the inner diameter, it is engraved on the body of your flow meter (see illustration below)

goes up on many Saeco and Gaggia machines: Espresso Italiano, Odea Go, Talea Giro, Talea Ring Plus, Xelsis, Accademia, Platinum Vogue, Unica {0011
