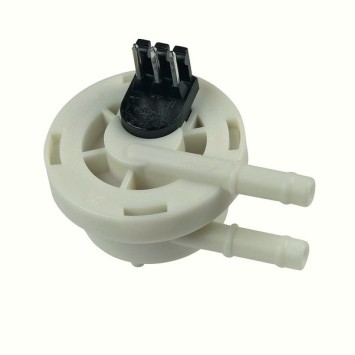

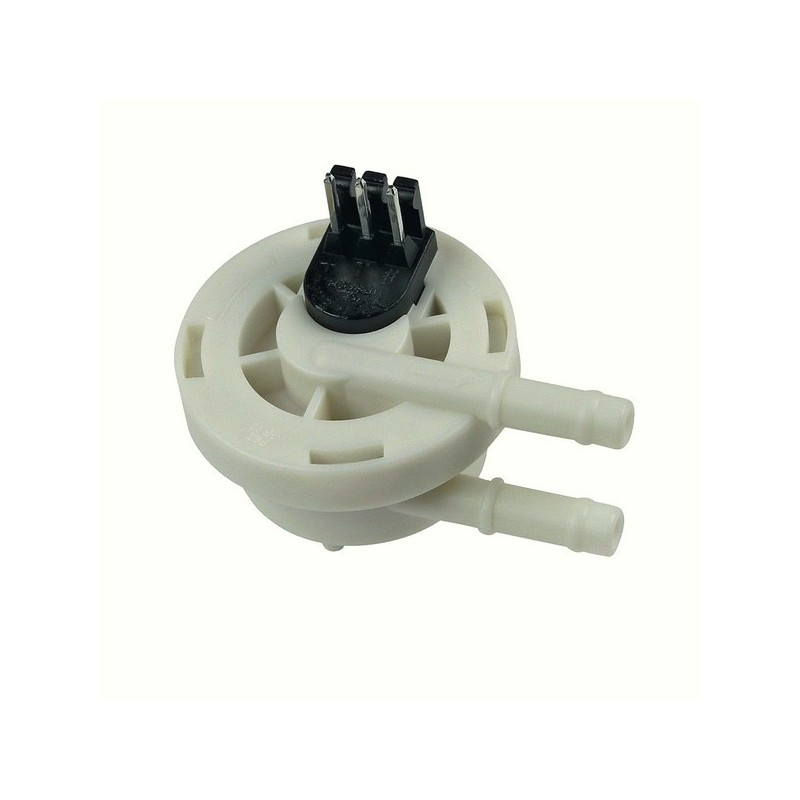

operating principle : Digmesa flowmeter is a component made up of a turbine with a magnet, in a plastic material. With the passage of water, the turbine turns, and the magnet passes in front of a micro -Contact to send an impulse flow to the device management map.

1 Pulse (or turbine tower) then corresponds to a volume of water.

as a function of the number of pulses, the device will then stop the water supply to obtain the right water dosage in your cup of coffee, or to determine when the descaling must be carried out.

diameter of the inner nozzle D = 1.2 mm or an eligible flow of 0.05 - 0.40 l/min depending on pump and circuit shock.

Information:

• code NV99.099 - 996530059843 - 421940207701
• input and output on the same side
• For the inner diameter, it is engraved on the body of your flow meter (see illustration below)

goes up on many Saeco, Gaggia, Philips: 002} machines}

Ambra, Area, Brera, Atlante, Aulik A, Cristallo, Diamante, Iperautomatica, Lirika, Royal, Rubino, Vienna, Talea, omea} Xsmall, Syntia, New Baby, Intelia, Office One, Exprelia, Nina ...
