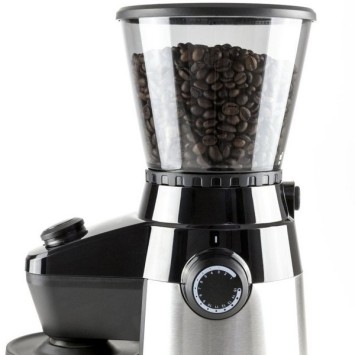

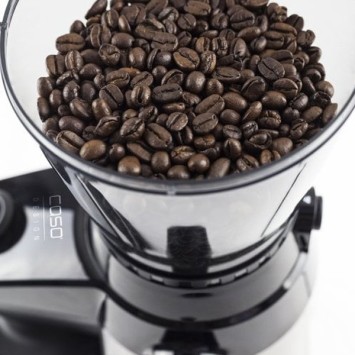

The grain tray is removable to facilitate filling.

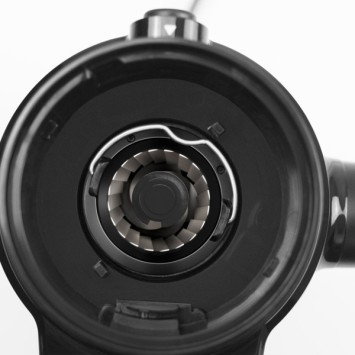

The conical stainless steel crusher grinds coffee grains gently and in silence

Le réservoir de récupération du café moulu peut en contenir 150g au maximum

Use: On this model, the quantity of ground coffee is determined by the duration of milling. Thus, you can determine the desired version duration with the selection button.

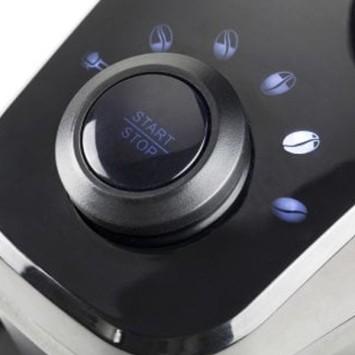

	This selection button allows you to choose the quantity of ground coffee desired depending on the duration of version. 1 = manual mode 2 = 10 sec. (about 2 cups) 3 = 20 sec. (about 4 cups) 4 = 30 sec. (about 6 cups) 5 = 40 sec. (about 8 cups) 6 = 50 sec. (about 10 cups)

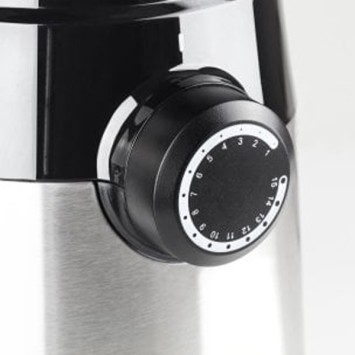

	With this selection button, you can choose the desired version intensity (from 1 to 15 degrees). 1 = fine ground (espresso machine) 15 = coarse version (piston coffee maker)

Note:

- Do not fill more than 300g of coffee beans in the grain tank

- Do not run the coffee mill on continuous more than 5 min

- The device must cool for 30 min if you made it work without interruption for 5 min

-The coffee mill puts itself on stand-by (automatic stop) beyond 90 min when no selection is made after the connection of the sector outlet.

- Clean the crusher after each use to prevent the powder depot with damage to the device and alter the taste of coffee

cleaning and maintenance tips

Safety instructions

- Before cleaning Remove the connector from the wall outlet

- Clean the device after use. Do not wait too long because it makes cleaning more difficult, and possibly impossible. A fouling leads to the plug, and can if necessary degrade the device

- Humidity penetration in the device can deteriorate electronic components

- Do not use aggressive or abrasive cleansing products and no solvent

- Do not scratch resistant dirt with sharp objects

- Do not immerse the device in water or another liquid and do not put in the dishwasher.

cleaning

- Disassemble the grain tray and rinse the under the tap, as well as its lid, the coffee powder tank and its cover. Then dry them carefully.

grinding body

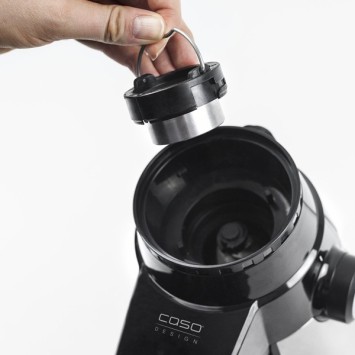

Lift the grinding body handle and test it in the opposite direction of the needles of a watch to detach it from the wheel. Clean the engine axis nut with a brush. Clean the grinding body under the water tap and then dry it carefully. Replace the grinding body and tighten it in the clock of a watch until it is engaged

CASO is a German company specializing in household appliances. It develops ranges with very innovative design, with leading technical solutions.
